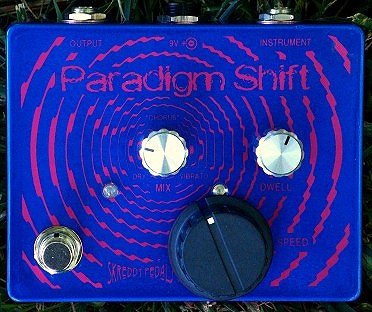

Classic Watery Phase Shifter
Deep and lush yet transparent; approximates the classic late 60's Univox™
Univibe™ sound, but is not a clone of that circuit.
Uses low-noise, low-distortion op-amp technology and LED/LDR phase
modulation Moves your sound but does
not impose its own. Will not distort or darken or thin
out your
signal (except to the extent that the moving, phase-shifted signal naturally
cancels out a sweeping band of frequencies in the dry signal as they mix).
Your signal tone is clean, clear, and full even with a bass guitar. Features a
wide range of speed, variable sweep dwell, and variable mix Controls:
Speed
Goes from almost standing still to super
fast rotary spin
Dwell
Controls the symmetry of the wobble
You can
emphasize the lower or upper range or leave it in the middle for a full-range
sweep.
Graphic illustrations of LED brightness at different settings...

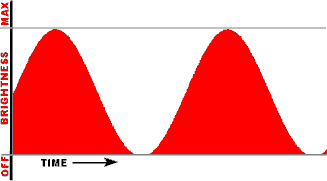

Dwell at center

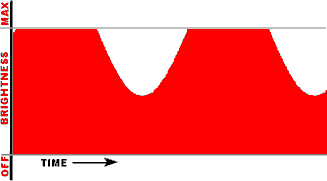

Dwell set to max

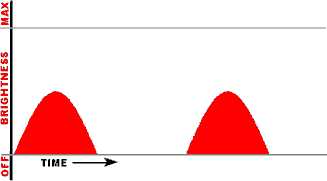

Dwell set to min
Univox and Univibe are trademarked terms and
belong to their respective owners.
Skreddy Pedals has no affiliation
with them. |
|
Home • News • Relief Auctions • Lunar Module Mini Deluxe • Screw Driver Mini Deluxe • P19 • Paradigm Shift • Echo • BASS FUZZ: Supa Tone • Top Fuel • Old Favorites • FAQ • Terms & Conditions • Artists • Gear Links • T-Shirts |
Mix
Variable from dry to "chorusy" phase shift to pitch
vibrato Move the mix more to the "dry" side for a
subtler, 70's phase effect, and more to the "vibrato" side for a wetter 60's
vibey effect, or leave it in the middle for a chewy, funky effect. This is an intentionally primitive mixer, and
it will get slightly louder at the extreme (CW and
CCW)
settings. One of the benefits of the simplicity of this
mixer is a very transparent signal chain with no noise reduction and no
gain-makeup stages needed.
|
Power:
DC adapter required; no battery option POWER SUPPLY
REQUIREMENTS:
(note: a power supply is NOT INCLUDED)
9 volts only
DC power supply
must have a standard 5.5mm barrel x 2.1mm center coax
Polarity: negative center (industry standard)
Do not use an AC power supply
9v
DC power only
|
|
|
After playing with
it for a while, you'll feel naked without one
Use it anywhere you'd think
about using a phaser, vibe, rotating speaker, or chorus effect.
Sounds incredible clean, but use
it with fuzz or distortion, and you'll have flashbacks.
|
|
Please allow
about 2 months for us to get through our list and
build your pedal.
|
|
US orders will be sent via USPS Priority Mail (signature
required).
International orders will be sent USPS Global Priority (where
available).
We will not declare your package at a lower value for customs;
be prepared to pay your country's import duty when you receive
the package.
|
LED Indicators:
Bypass (Green) indicates when circuit is active, off when in
true-bypass
Speed (Red) indicates the speed and the dwell of the sweep,
always active |
|
