Lush, Tape-Like, Saturated Delays with Adjustable Warble
Ultra-High Sample-Rate (Delta-Sigma) Digital Delay with Analog Filtering
and Limiting
Transparent, Analog "Dry" Path with Tons of Headroom
Effects Loop for Delay Line

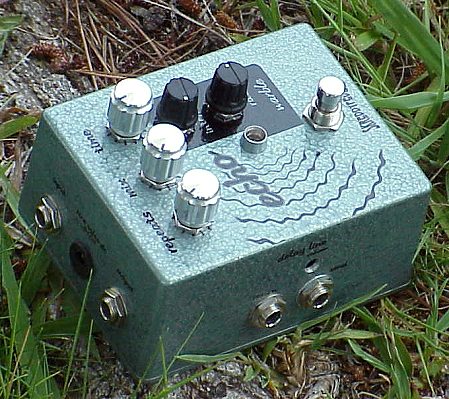

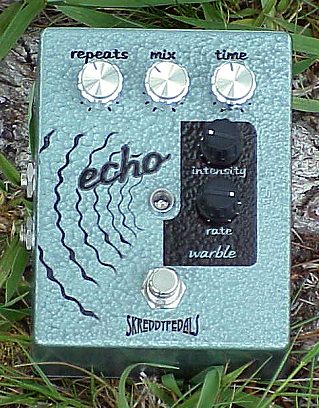

The Skreddy Echo™
was designed to take over the duties of my old, green, tube tape echo.
My design goals were simple: 1) make it sound 'right'; 2) it should inspire.
The repeats degrade very gradually into a musical, harmonic soup if you turn
them up high enough. Self oscillation is possible (though not in a touchy
or unpredictable way) without the bothersome runaway volume some old analog
delays have.
All hand wired with Switchcraft open-frame jacks.
Download Manual (pdf)
|
|
Home • News • Screw Driver • Screw Driver Dlx • Lunar Module • Echo • Retired • Artists • T-Shirts • Gear Links • Digital Sucks |
|
Get
Lost in Your Playing Again
 |
Great classic tape delay
tones (~50ms -- ~650ms) with as much or as little warble as you
like |
 |
Sounds equally great clean
or with overdrive, distortion, or fuzz in front |
 |
Effects loop allows delay-only
processing or "wet" amp stereo setup |
 |
Huge range, including slap-back,
atmospheric, cathedral/stadium, self-accompanying rhythms, expansive
delays, self-oscillation, vibrato-chorus-detuned effects, etc. |
|
| True bypass, runs on DC adapter only*
(not included), in/out/dc jacks all on back side, loop jacks on left
side.
Size: 5" long x 4" wide x 3" tall (including jacks and knobs)
|
|
Allow about 5 months for
me to make your pedal.
US orders will be sent via USPS Priority Mail
International orders will be sent Global Priority (where available)
|
|
| Thanks
to Björn Juhl for helpful advice with regard
to my limiter circuit.
|
|
|
|
*POWER SUPPLY REQUIREMENTS:
(note: a power supply is NOT INCLUDED)
DC power supply
must have a standard 5.5mm barrel x 2.1mm center coax Polarity: negative center (industry standard)
-- for example, a Boss™
or Roland™ or Digitech™/Harman Pro™ 9vdc power supply --
Amperage: you will want to supply a minimum of 200 ma
(Note: it will not actually draw 200 ma; this just provides a generous
surplus which insures that no under-voltage conditions will occur internally).
Voltage can be 9v for the stock, soft, "vintage" tone,
or higher,
up to 18v, for a clearer, harder, more "bell-like" tone
-- for example, the Dunlop™ 18vdc power
supply --
Do not use an AC power supply
DC power only
|
|
Trim Pots:
(accessible via
holes in sides--no need to remove cover)
|
Loop Level (left side):
allows you to reduce the volume of the
effects return signal. A great many things you might consider using
in the loop boost the signal (throwing the echo into an unbalanced state
with excessive volume and self-oscillation); this is your attenuator for
those effects that lack their own volume control.
This control is ALWAYS ACTIVE when the delay is in use regardless of whether
you're using anything in the effects loop. This will also allow you to
de-intensify the "Mix" control and open up the range of subtle settings.
Factory setting: 100% ("5:00 o'clock")
|
Modulation Range (right side): allows
you to manage the range of the warble intensity knob. This is a
good thing for three reasons:
1, you can eliminate the possibility of accidentally getting something
un-useful on stage
2, because of the way the circuit is designed, you can actually get a
slightly shorter minimum delay if you turn the modulation range down really
low, allowing for bathtub-style reverb/slap-back effects
3, if you use a higher voltage power supply, you will need to adjust the
modulation range downward, as the stronger power supply drives the LED
brighter, making the modulation more intense (yes; the modulation is driven
by an LED/LDR combination--you can see it at work if you remove the lid).
Factory setting: 50% ("noon")
|
It is normal to hear a tiny bit of white noise on top of the echoes when
you set the delay time to its extreme maximum setting. Back that
knob up just a touch if it bugs you. |
Sound Clips:
|
Marko MijailovicSkreddy Echo Demo
Cranked Echo |
|
Michael Dukes
Slapback (solo'd guitars)
(604 KB)
Slapback (in the mix with other
instruments)
(804 KB)
"That's Screw Driver on both parts, Echo, into the usual
suspect Magic Brit. I think the L guitar is Tele bridge, the R
guitar the PRS with TV Jones FilterTron bridge."
Subtle Echos (3,724 KB)
PRS -> Screw Driver -> Echo -> Magic Amp AC15 clone
-
clean, bypassed
-
clean with subtle echo
-
clean, bypassed
-
clean with chorus/vibrato effect
-
distortion bypassed
-
distortion with subtle echo
|
Brian BeykeNine
(clip)
(699.23KB)
Reverend Slingshot on the center through a Vintage Twin Reverb and
an Orange AD-30R
|
Jonathan Wilson
Rhodes clip
(381.79KB)
Electric piano into Skreddy Echo with a Whammy octave-up in the
loop
|
|
|
|
|
|
|
|
